Hydra Dion

3 models: 20kW single, 30kW single, 40kW (2 x 20kW) Dual

Entry level model requires only 33A input power.

The Hydra Dion Compact Wall-Mounted Fast Charging DC Range provides dynamic, load balancing power distribution for up to two vehicles, each receiving 20kW or 40kW depending on configuration.

View Datasheet

The Hydra Dion 40kW model provides flexible, dynamic, load balanced power distribution for up to two vehicles, each receiving 20kW. The charging output is up to 40kW for single use.

RCD PROTECTION



  • Built-in Type B RCD
    DC 6 mA / AC 30 mA
  • (Industrial-grade protection)

COOLING METHOD

  • Smart air cooling with a built in fan

MOUNTING

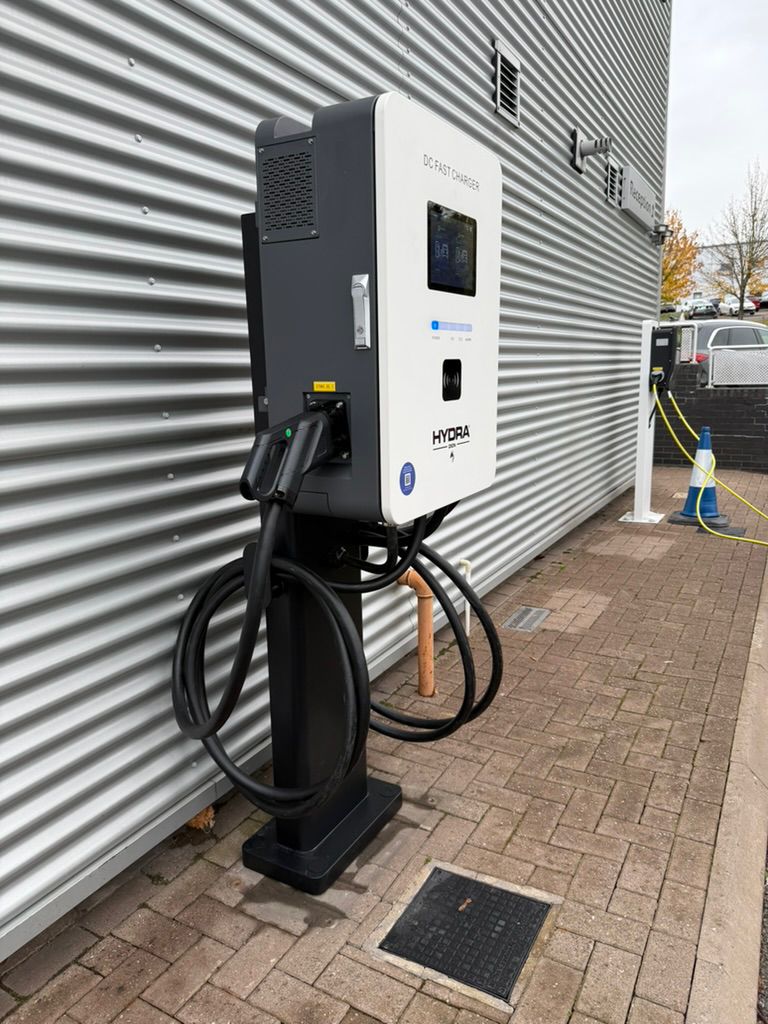

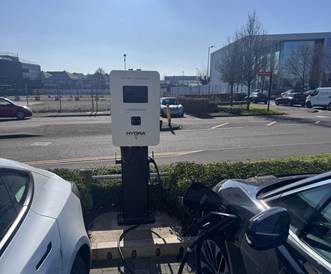

  • Pedestal mounting

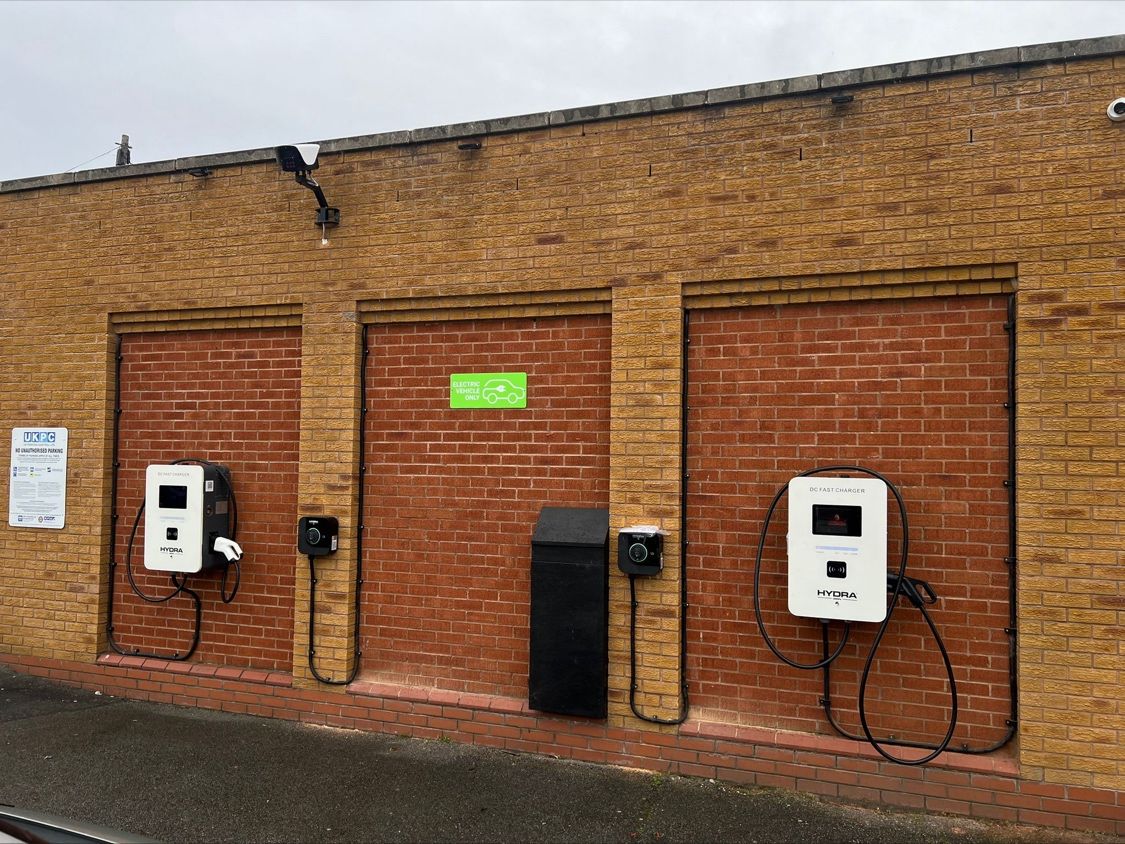

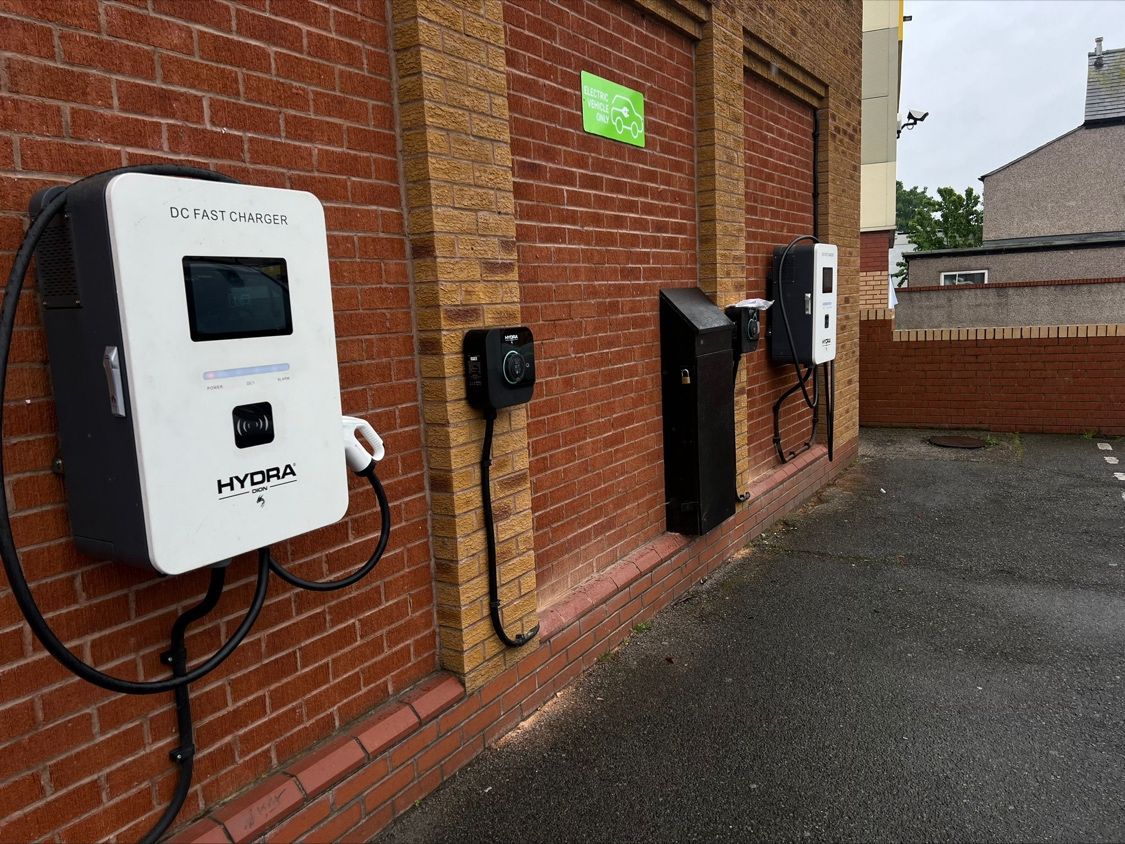

  • Wall mounting

LCD DISPLAY

  • High definition industrial touch screen

TYPE OF CONNECTION

  • 3P+N+PE
  • Gauge dependent on calculations

EARTHING ARRANGEMENT

  • Built in PEN fault protection

The Hydra Dion can self-detect the specification of the vehicle being charged – car, van, HGV or public transport vehicle – and displays real-time battery charge status information on the external data screen.
